Description
| Category | PREFAB |
| Page | F25 |
| : | |

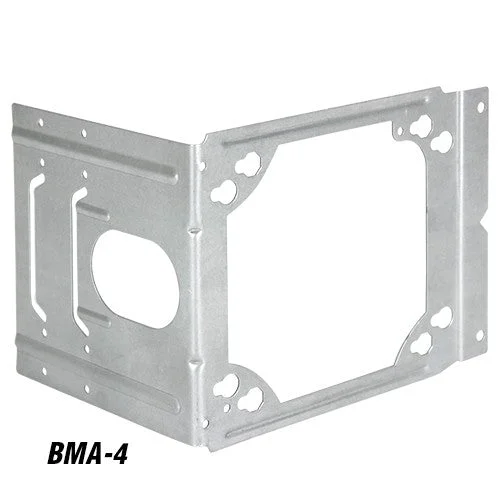

| Orbit Industriesš¢ Box Mounting Adapter mounts 4š½ or 4-11/16š½ square boxes directly-to-studs. The bracket features Far Side Support for up to 4″ deep studs, eliminating most of the box movement. Mounting holes allow for the use of a 4″ ring, removing the need for an electrical box on low voltage applications. | |
| Features: | |
| – BMA-4 mounts 4″ & 4-11/16″ Sq. boxes directly-to-stud – BMA-4’s mounting holes allow for the installation of a 4″ ring for low voltage applications with #8-32 screws – BMA-4’s adjustable Back Support helps maintain rigidity once installed – BMA-4’s low profile design limits drywall bulging – For use with metal or wood studs – For tool-less far-side support up to 6š½, see BMA-26 |
|
| Specifications: | |
| Material | Sheet Steel |
| Color | Galvanized |
| Mfg. Process | Stamped |
| Certifications: | |
| UL File Number: | |
| E310661* | |
*BMA-23 has been replaced by BMA-26
Catalog
|
UPC |
Std.
|
|
| BMA-4* | 8-35243-00684-3 | BOX MOUNT ADAPTER WITH 2-1/2″,3-1/2″ & 4″ FAR SIDE SUPPORT | 25 |
| FS-456-EXT | 8-35243-02879-1 | FAR SIDE SUPPORT EXTENSION FOR 4″ 5-1/2″ 6″ | 50 |
