Description

PRODUCT FEATURES

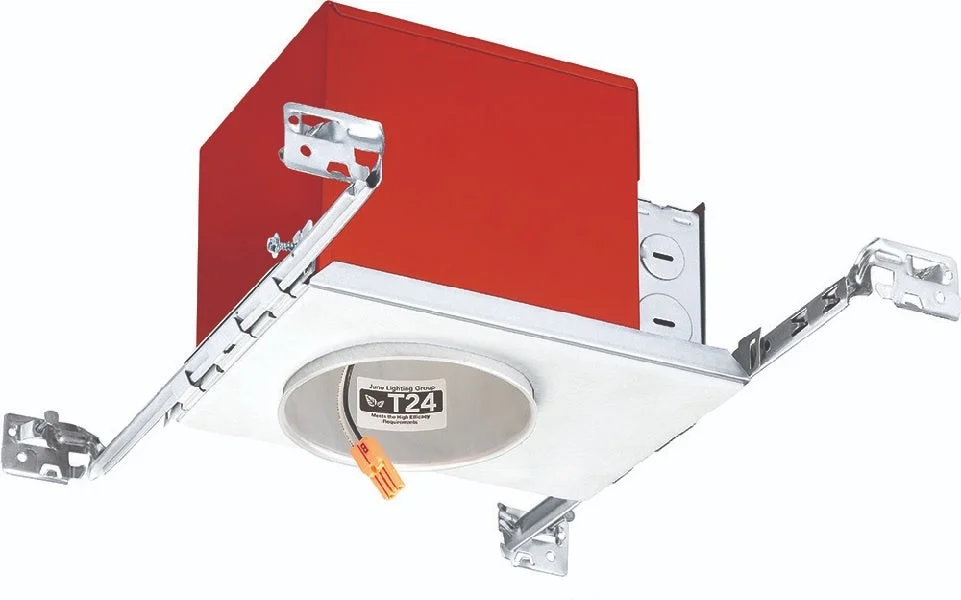

4″ quick connect LED housing fire-rated downlight solution features nonscrew base 120V plug-in connector for simple installation of Juno retrofitLED trim modules.
Patent pending integrated low smoke intumescent barrie

• Eliminates the need for installers to build additional boxes around fixtures to meet fire ratings
• Provides protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hour fire ratings
• Reduces sound transmission between floors

Easy installation and servicability

• Low profile housing less than 6″ in height
• Easy to handle compact size weighing only 4 lbs
• Installs into wood joists with Real Nail 3 bar hangers

PRODUCT APPLICATIONS

• Residential and commercial applications including multi-family, hotels, assisted living, dormitories and other multi-level construction
• Shallow plenum, new construction
• IC rated – for direct contact with insulation

FIRE RESISTANCE SPECIFICATIONS

• Conforms to UL263, ASTM STD E119 and CAN/ULC-S101 US and Canadian installations
• May be used in fire resistance floor-ceiling and roof-ceiling designs per UL Fire Classified Directories CDHW and CDHW7
• 1 hour fire rated floor/ceiling and roof/ceiling gypsum assembly per UL Design No. L500 & P500
• 2 hour fire rated floor/ceiling gypsum assembly per UL Design No. L500, L505, L511, L536, L538, L541, L556, L577, M500, M510, M521 & M543
