Description
10W / 12W / 20W, 2700K, 3000K, 3500K, 4000K, 5000K, 750 lm / 1000 lm / 1500 lm

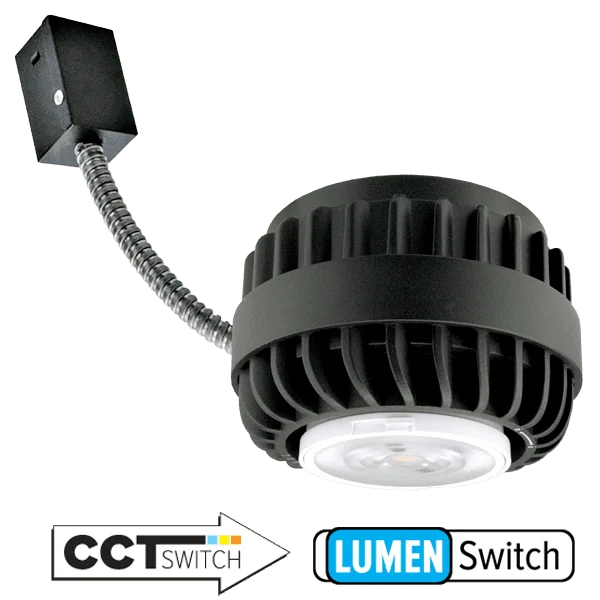

The beautifully designed die-cast module houses powerful and advanced LED technology to provide increased durability and outstanding illumination. Works with 4″, 6″ & 8″ Birch Commercial Frames, Remodel, Retrofits and Twist-On Trims.
Product Features
- IC Rated for direct contact with insulation, for use in IC and Non-IC applications
- Select Color Temperature (2700K to 5000K) and Lumen Output (750 lm to 1500 lm) by using manual switch on module
- Adjustable Focus Beam Angle allows for manual beam angle adjustment from 25˚ to 45˚ range with the easy of a twist
- Featured Twist-On mechanism to easily locked module to any size trim
- Encased Quick Connector for easy module installation
- Works in 4″, 6″, and 8″ Commercial Frames, Remodel and Retrofit applications
- 120/277V input with 0-10V dimming
- Excellent color rendering 93+ CRI.
- ETL listed for damp location
- Life span of 50,000 hours L70
Specifications
- Wattage: 10W / 12W / 20W
- Lumens: 750 lm / 1000 lm / 1500 lm
- Voltage: 120/277V
- Color Temp.: 2700K, 3000K, 3500K, 4000K, 5000K
- Dimmable: 0-10V
- Lamp Type: LED
- Beam Angle: 25˚ to 45˚
- CRI: 93+
- Damp Location: Listed
| Catalog Number | Lamp type | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle |
|---|---|---|---|---|---|---|---|
| ELB15RCT5ICA | LED | 10W / 12W / 20W | 2700K, 3000K, 3500K, 4000K, 5000K | 750 lm / 1000 lm / 1500 lm | 120/277V | 0-10V | 25˚ to 45˚ |
