Description

Core Lighting LSM60MX-2240-16FT-24V-HC90

LSM60MX-2240-16FT-24V-HC90 Product

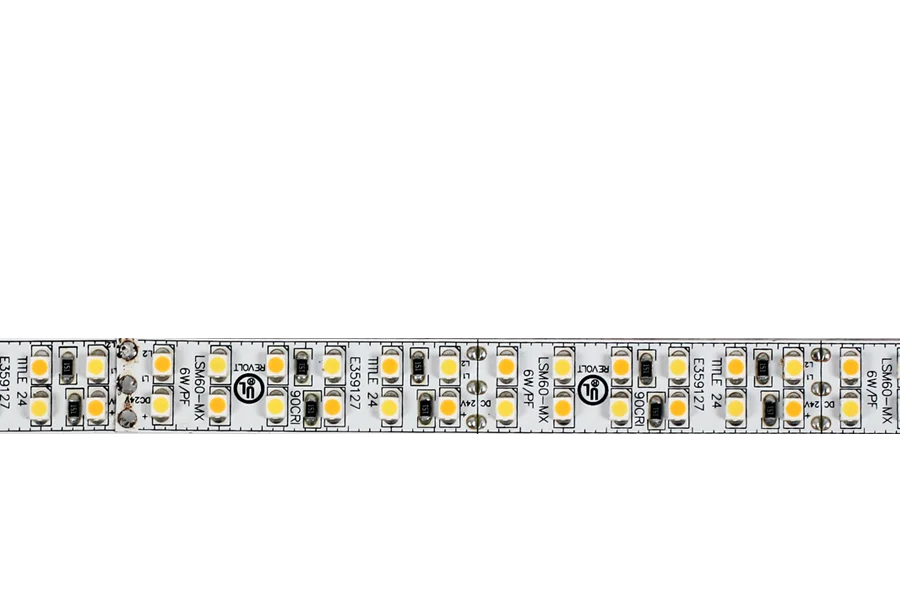

LSM60MX  is a new hybrid version of our popular LSM-60 series. It features combined Color Temperatures in one LED strip ranging from warm 2200K to cool 6000K. It is offered in a low-profile design that can be attached almost anywhere. These strips are great for many common indoor applications, and produce a 120° light beam spread. The LSM indoor LED strips are bright eco-friendly,  dimmable and produce virtually no heat. Once installed you can enjoy your lights without worrying about changing any bulbs with a lifespan of over 50,000 hours!

Specifications:

Manufacturer: Core Lighting
SKU: LSM60MX-2240-16FT-24V-HC90
INPUT VOLTAGE  24V DC
POWER CONSUMPTION  6W per Ft.
LUMEN OUTPUT  500+ Lumens per Ft.
NO. OF LEDs   72 LEDs per Ft.
BEAM ANGLE 120º
CRI  90+
DIMMING  MLV, ELV, 0-10V and TRIAC
MAXIMUM RUN LENGTH  16 Feet
FIELD CUTTABLE Every 1.0 in (25.4MM)
IP RATING IP45 dry location (indoor)
LUMEN MAINTENANCE  50,000 hrs.
OPERATING TEMPERATURE  -40ºF(-40ºC)~+140ºF(+60ºC)
BINNING  1.5 Step Macadam Elipse
CERTIFICATIONS  UL listed
DIMENSIONS 0.67” x 0.20” (width x height)
