Alloy LED AL-01-90-2402

AL-01-90-2402 Product

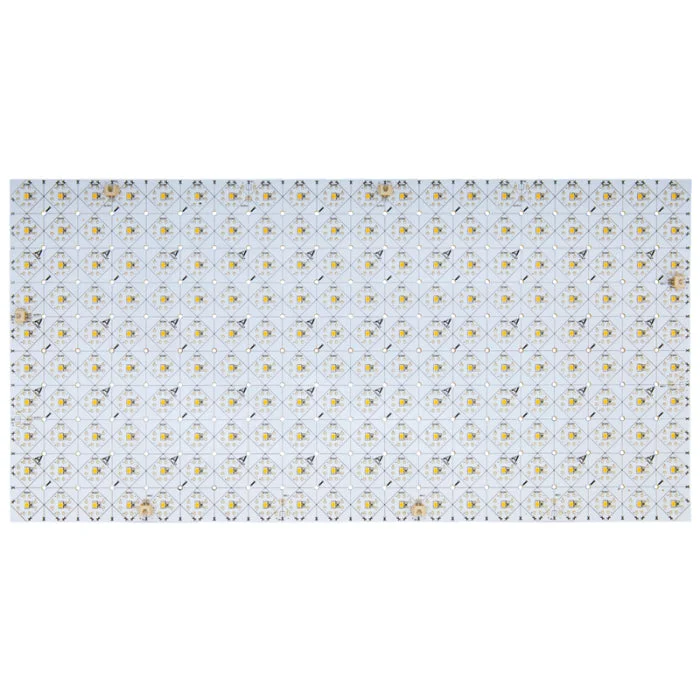

The PrimaPanel LED Sheet is a fully modular, flexible, water-resistant, and cuttable LED sheet for backlighting applications such as displays, translucent materials, showcases, and more. The LED sheet can create a hotspot-free look and offers easy installation with 3M™ adhesive tape or by using nails or screws at the designated areas on the sheet.

Specifications:

Manufacturer: Alloy LED
Manufacturer Part Number: AL-01-90-2402
Color Temperature: 3000K
24V Power Consumption per ft.: 16.6 Watts
Input Voltage: 24V DC
Diodes per sheet: 200
Diode Spacing: 0.94 inches
Sheet Height: 0.07 inches
Beam Angle: 120°
Cutting Size: 0.94 x 0.94 in. (Horizontal/Vertical)/0.67 x 0.67 in. (Diagonal)
Maximum Run: 7 sheets
Dimmable: Yes
Diode Type: 2835 SMD
Mounting: Screws, nails and 3M™ VHB™ Adhesive Backing
Operating Temperature: -13° F to 140° F
Sheet Dimensions (LxWxH): 18.9 x 9.45 x 0.07 in.
Maximum Bend Radius: 1 inch
Location: Indoor, Outdoor (IP64)
Certifications: UL Listed
Lumens: 1269/ Ft
